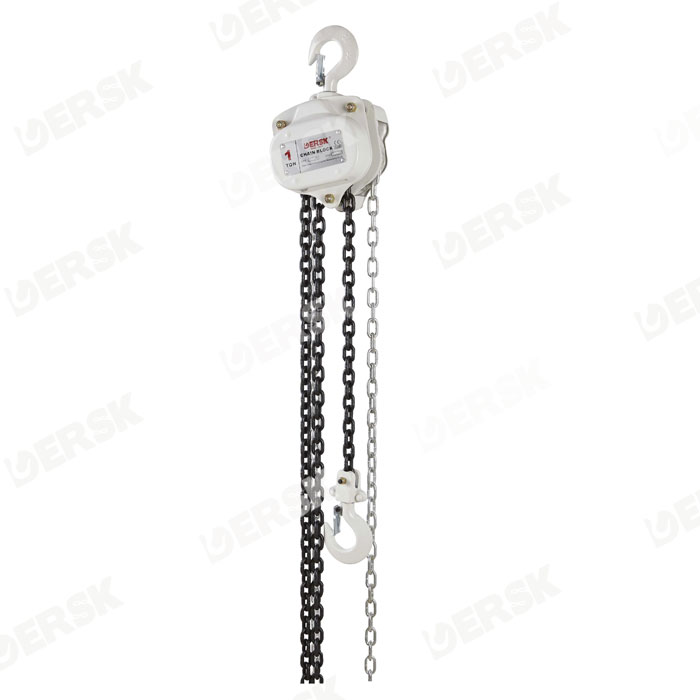

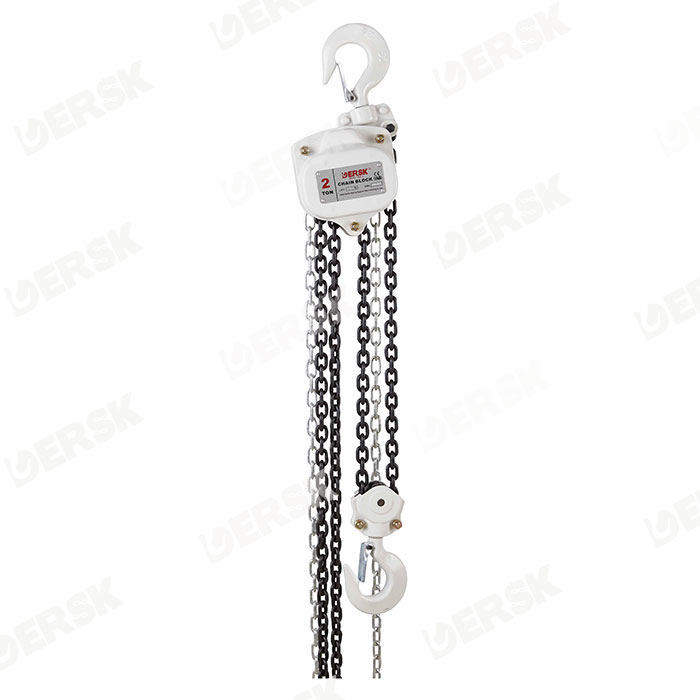

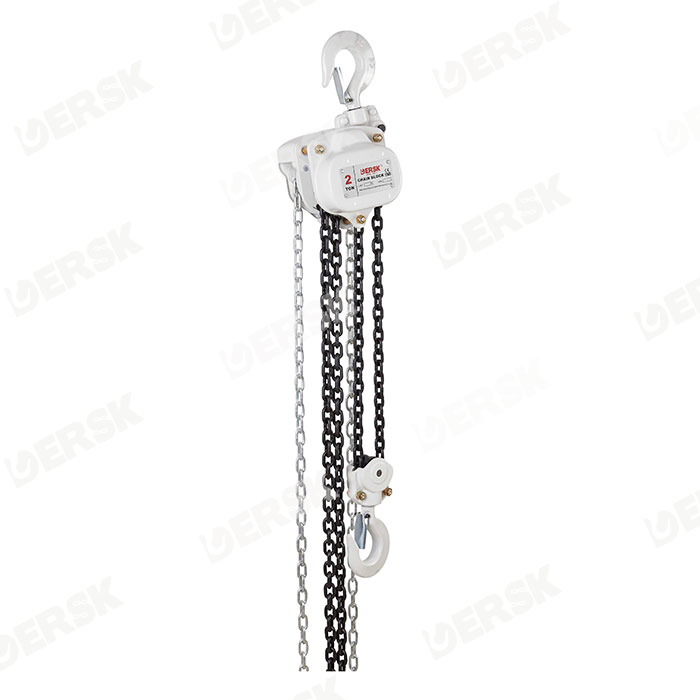

  • DKVT Chain Block

    Add time:2022-05-11 15:18:52   Number of views:350

    * The shell of our product is more thicker and it uses convex rib process, which is anti-impact / impact-resistant and protects internal structure efficiently.

    * Multiple support structure makes the transmission system get a reasonable stress, makes the move more flexible and low failure rate.

    * Adopting double ratchets brake system, improved the safety more than two times. the safety factor has been enhanced over twice.

    * Our product uses skid proof nut, the security is outstanding.The hook is made of top-end forged alloy material, is much safer.

    * It adopts high-strength lifting chain with 80 grades.

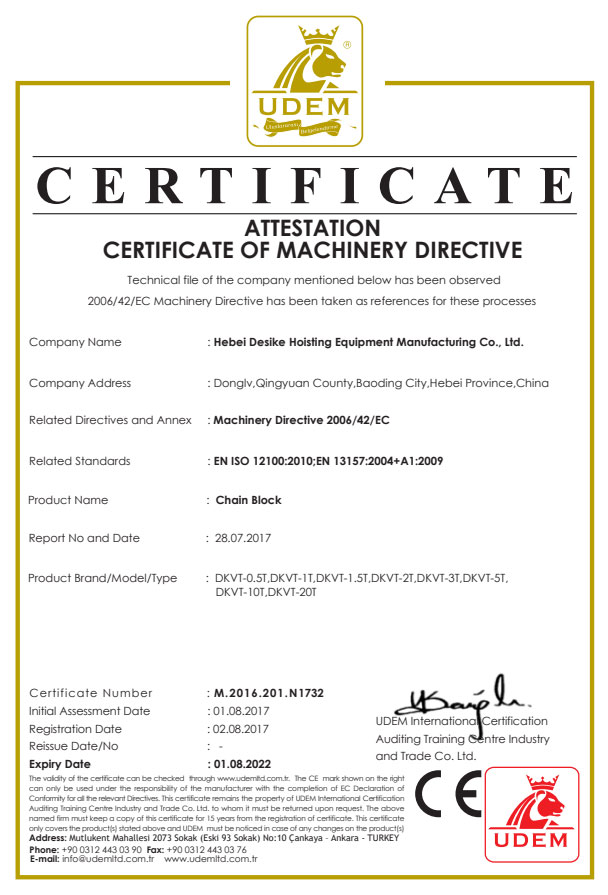

    * Our product has CE certificates.




    Technical Parameters

    Model

    DKVT

    Capacity(Ton)

    0.5

    1

    2

    3

    5

    10

    2

    Standard Lifting height  (m)

    3

    3

    3

    3

    3

    2

    3

    Running Test Load (ton)

    0.625

    1.25

    2.5

    3.75

    6.25

    12.5

    25

    Load Chain Dia.(mm)

    Columns

    1

    1

    1

    2

    2

    4

    8

    Dia

    5

    6

    8

    7.1

    9

    10

    10

    Effort to Rrquirde to Lift MAX.(n)

    231

    309

    320

    360

    414

    420

    42×2

    Net Weight(kg)

    7

    10.5

    18

    22

    40

    70

    162

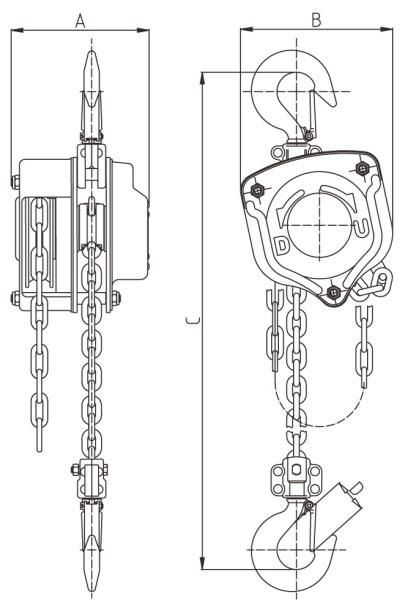

    Dimension(mm)

    A

    115

    143

    152

    148

    181

    181

    192

    B

    136

    156

    198

    182

    266

    365

    630

    C

    270

    317

    414

    465

    636

    789

    890

    D

    25

    27

    36

    38

    48

    57

    84

    Packing Measurements

    22×15×23

    22×18×23

    28×21×27

    32×21×29

    40×21×35

    54×49×28

    64×38×64
