* Our product adopts Japanese technology, owing an advanced shell and using convex word process.
* Using low alloy steel plate is safe, reliable and endurable.
* High-strength G80 lifting chain make it more safe and longer lifetime.
* Turning steadily, high efficiency, and small hand pulling strength for labor-saving.
* Double ratchets make it more safe and reliable.
* The regular bearing is steel bushing, and the needle roller bearing also can be chosen in order to promote the performance of the product.
Technical Parameters | |||||||
Model | DVD | ||||||
Capacity(Ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
Standard Lifting height (m) | 3 | 3 | 3 | 3 | 3 | 3 | |
Running Test Load (ton) | 0.625 | 1.25 | 2.5 | 3.75 | 6.25 | 12.5 | |
| Columns | 1 | 1 | 1 | 1 | 2 | 4 |
Load Chain Dia.(mm) | |||||||
| Dia | 5 | 6 | 8 | 10 | 9 | 9 |
Effort to Rrquirde to Lift MAX.(n) | 235 | 245 | 324 | 363 | 353 | 380 | |
Net Weight(kg) | 9.3 | 12 | 19.4 | 31.1 | 40 | 85 | |

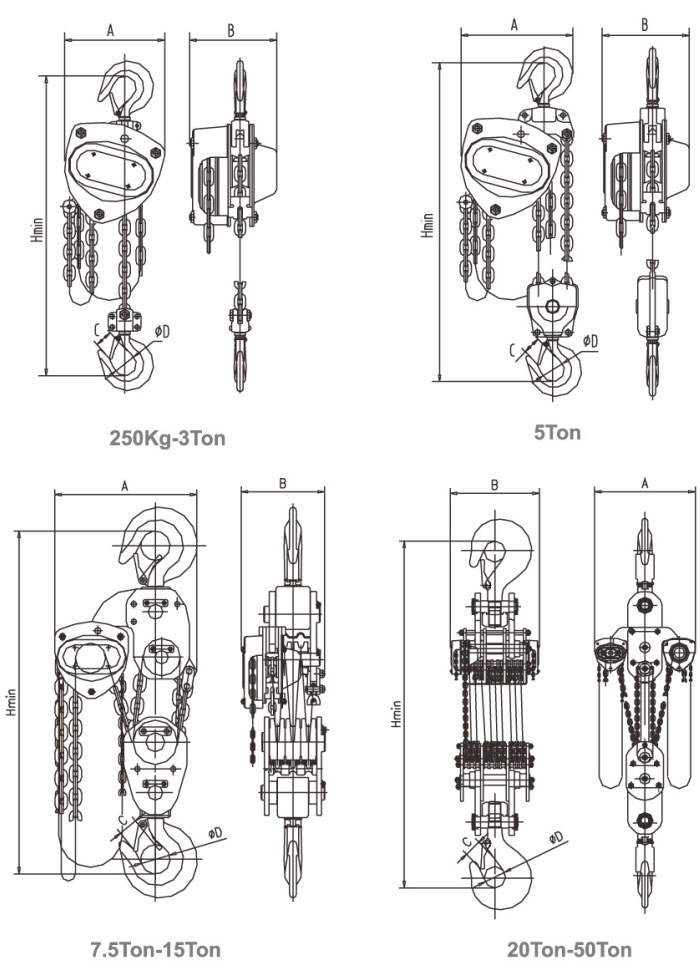

Dimension(mm) | A | 148 | 172 | 210 | 255 | 280 | 463 |
B | 132 | 151 | 175 | 205 | 189 | 489 | |
C | 25 | 30 | 35 | 40 | 42 | 56 | |
D | 345 | 376 | 470 | 548 | 688 | 765 | |
Packing Measurements | 29×18×17 | 31.5×20×17 | 34×21×23 | 40×27.5×23 | 42×32×27 | 52×50×29 | |
Extra Weight per Meter of Extra Lift (kg) | 1 | 1.29 | 1.92 | 2.68 | 4.1 | 7.73 | |
