* 3 meters lifting height and power supply cable as standard accompanies , can be made as your request
* Canvas chain bag is standard accompanies. Steel chain container is available if lifting height is more than capacity of the standard container volume
* Emergency stop button on the push button, push down it, the motor circuit will be cut off
* Single Voltage , Dual Voltage or three Voltage optional (220/380V,220/380/440V etc.) ,50/60hz optional
* Control voltage : 24V/36V/48V optional .
* Dual speed or single speed optional.
* Working grade: M4
* G80, G100, or FEC Japan chain optional.
* Remote control ,Travel limiter ,Overload limiter, Rain cover can be customized.
Single Speed | ||||||||||||
Model | PDL | |||||||||||
0.25-01S | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S | ||
Capacity(t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | ||||
Lifting Speed(m/min) | 7.2 | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 | |
Motor power(kw) | 0.8 | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 | |
Rotation Speed(r/min) | 1440 | |||||||||||
Insulation Grade | F | |||||||||||
Power Supply | 3P 220V-690V | |||||||||||
Control Voltage | 24V/36V/48V | |||||||||||
No. of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 | |
Spec. of Load Chain | ϕ6.3 | ϕ6.3 | ϕ7.1 | ϕ10 | ϕ10 | ϕ7.1 | ϕ11.2 | ϕ11.2 | ϕ10 | ϕ7.1 | ϕ11.2 | |
Net Weight(kg) | 45 | 47 | 61 | 108 | 110 | 43 | 115 | 127 | 89 | 138 | 220 | |

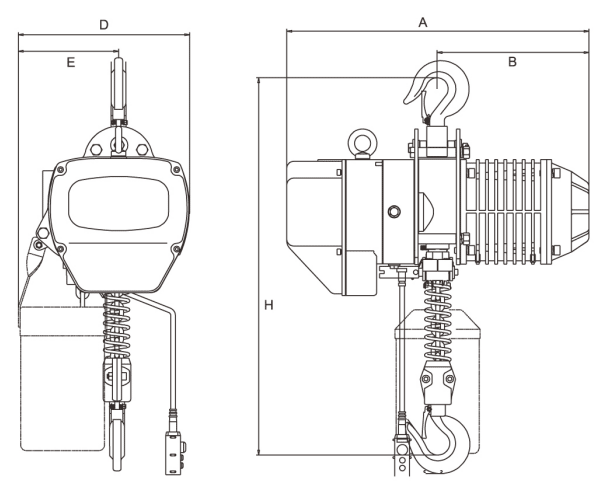

BasicDimension | H | 530 | 530 | 650 | 800 | 800 | 835 | 845 | 950 | 950 | 950 | 1030 |
A | 460 | 460 | 520 | 615 | 615 | 520 | 615 | 615 | 615 | 520 | 615 | |
B | 230 | 230 | 260 | 295 | 295 | 260 | 295 | 295 | 295 | 260 | 295 | |
D | 288 | 288 | 300 | 430 | 430 | 300 | 430 | 430 | 430 | 350 | 430 | |
E | 178 | 178 | 176 | 265 | 265 | 236 | 265 | 265 | 320 | 205 | 325 | |
Dual Speed | ||||||||||||
Model | PDL | |||||||||||
0.25-01D | 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D | ||
Capacity(t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | ||||
Lifting Speed(m/min) | 7.2/2.4 | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 | |
Motor power(kw) | 0.8/0.27 | 0.8 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/1.6 | 3.0/1.0 | |
Rotation Speed(r/min) | 2880/960 | |||||||||||
Insulation Grade | F | |||||||||||
Power Supply | 3P 220V-690V | |||||||||||
Control Voltage | 24V/36V/48V | |||||||||||
No. of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 | |
Spec. of Load Chain | ϕ6.3 | ϕ6.3 | ϕ7.1 | ϕ10 | ϕ10 | ϕ7.1 | ϕ11.2 | ϕ11.2 | ϕ10 | ϕ7.1 | ϕ11.2 | |
Net Weight(kg) | 52 | 54 | 71 | 114 | 150 | 86 | 148 | 159 | 168 | 102 | 184 | |
BasicDimension | H | 530 | 530 | 650 | 800 | 800 | 835 | 845 | 845 | 950 | 950 | 1030 |
A | 545 | 460 | 520 | 670 | 670 | 582 | 670 | 670 | 615 | 582 | 670 | |
B | 260 | 260 | 280 | 313 | 313 | 280 | 313 | 313 | 313 | 280 | 313 | |
D | 288 | 288 | 300 | 430 | 430 | 300 | 430 | 430 | 430 | 350 | 430 | |
E | 178 | 178 | 176 | 265 | 265 | 236 | 265 | 265 | 320 | 205 | 325 | |
Single Speed | ||||||||||||
Model | PDL | |||||||||||
0.25-01S | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S | ||
Capacity(t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 3 | 3 | 5 | |
Lifting Speed(m/min) | 7.2 | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 | |
Lifting Motor Power(kw) | 0.8 | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 | |
Traveling Speed(rn/min) | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 11.0 | |
Traveling Motor Power(kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | |
Rotation Speed(r/min) | 1440 | |||||||||||
Insulation Grade | F | |||||||||||
Power Supply | 3P 220V-690V | |||||||||||
Control Voltage | 24V/36V/48V | |||||||||||
No. of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 | |
Spec. of Load Chain | ϕ6.3 | ϕ6.3 | ϕ7.1 | ϕ10 | ϕ10 | ϕ7.1 | ϕ11.2 | ϕ11.2 | ϕ10 | ϕ7.1 | ϕ11.2 | |
Net Weight(kg) | 68 | 71 | 103 | 145 | 161 | 123 | 155 | 167 | 189 | 151 | 220 | |
I-Beam Width(mm) | 58-153 | 58-153 | 58-153 | 82-178 | 82-178 | 82-178 | 100-178 | 100-178 | 100-178 | 100-178 | 100-178 | |
BasicDimension | H | 530 | 635 | 650 | 770 | 770 | 815 | 830 | 830 | 930 | 940 | 1015 |
A | 460 | 460 | 520 | 615 | 615 | 520 | 615 | 615 | 615 | 520 | 615 | |
B | 230 | 230 | 260 | 295 | 295 | 260 | 295 | 295 | 295 | 260 | 295 | |
D | 288 | 288 | 300 | 430 | 430 | 300 | 430 | 430 | 430 | 350 | 430 | |
E | 178 | 178 | 176 | 265 | 265 | 236 | 265 | 265 | 320 | 205 | 325 | |
Dual Speed | ||||||||||||
Model | PDL | |||||||||||
0.25-01D | 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D | ||
Capacity(t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | ||||
Lifting Speed(m/min) | 7.2/2.4 | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 | |
Motor power(kw) | 0.8/0.27 | 0.8 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/1.6 | 3.0/1.0 | |
Traveling Speed(rn/min) | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 11 | |
Traveling Motor Power(kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | |
Rotation Speed(r/min) | 2880/960 | |||||||||||
Insulation Grade | F | |||||||||||
Power Supply | 3P 220V-690V | |||||||||||
Control Voltage | 24V/36V/48V | |||||||||||
No. of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 | |
Spec. of Load Chain | ϕ6.3 | ϕ6.3 | ϕ7.1 | ϕ10 | ϕ10 | ϕ7.1 | ϕ11.2 | ϕ11.2 | ϕ10 | ϕ7.1 | ϕ11.2 | |
Net Weight(kg) | 68 | 71 | 103 | 145 | 161 | 123 | 155 | 167 | 189 | 151 | 220 | |
I-Beam Width(mm) | 58-153 | 58-153 | 58-153 | 82-178 | 82-178 | 82-178 | 100-178 | 100-178 | 100-178 | 100-178 | 100-178 | |
BasicDimension | H | 650 | 650 | 650 | 650 | 770 | 815 | 830 | 830 | 930 | 940 | 1015 |
A | 545 | 545 | 582 | 582 | 670 | 582 | 670 | 670 | 615 | 582 | 670 | |
B | 230 | 260 | 280 | 280 | 313 | 280 | 313 | 313 | 313 | 280 | 313 | |
D | 288 | 288 | 300 | 300 | 430 | 300 | 430 | 430 | 430 | 350 | 430 | |
E | 178 | 178 | 176 | 176 | 265 | 236 | 265 | 265 | 320 | 205 | 325 | |
Single Speed | ||||||||||||
Model | PDL | |||||||||||
0.5-01L | 01-01L | 1.5-01L | 02-01L | 02-02L | 2.5-01L | 03-01L | 03-02L | 05-02L | 7.5-03L | 10-04L | ||
Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 3 | 5 | 7.5 | 10 | |
Lifting Speed(m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.7 | 1.8 | 2.7 | |
Lifting Motor Power(kw) | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 3 | 3 | 3 | |
Traveling Speed(m/min) | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 11 | 11 | 11 | |
Traveling Motor Power(kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | |
Rotation Speed(r/min) | 1440 | |||||||||||
Insulation Grade | F | |||||||||||
Power Supply | 3P 220V-690V | |||||||||||
Control Voltage | 24V/36V/48V | |||||||||||
No. of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 3 | 4 | |
Spec. of Load Chain | ϕ6.3 | ϕ7.1 | ϕ10.0 | ϕ10.0 | ϕ7.1 | ϕ11.2 | ϕ11.2 | ϕ10.0 | ϕ11.2 | ϕ11.2 | ϕ11.2 | |
Net Weight(kg) | 82 | 110 | 156 | 183 | 114 | 187 | 195 | 202 | 282 | 310 | 425 | |
I-Beam Width(mm) | 58-153 | 58-153 | 82-178 | 82-178 | 82-178 | 100-178 | 100-178 | 100-178 | 100-178 | 150-220 | 150-220 | |
Basic Dimension(mm) | H | 440 | 480 | 570 | 570 | 535 | 640 | 640 | 685 | 740 | 890 | 850 |
A | 460 | 520 | 615 | 615 | 520 | 615 | 615 | 615 | 615 | 615 | 615 | |
B | 230 | 260 | 295 | 295 | 260 | 295 | 295 | 295 | 295 | 295 | 295 | |
D | 585 | 630 | 720 | 720 | 665 | 775 | 775 | 750 | 825 | 1020 | 996 | |
E | 400 | 445 | 505 | 505 | 445 | 526 | 526 | 503 | 541 | 730 | 700 | |
Daul Speed | ||||||||||||
Model | ||||||||||||
0.5-01LD | 01-10LD | 1.5-10LD | 02-10LD | 02-02LD | 2.5-01LD | 03-01LD | 03-02LD | 05-10LD | 7.5-03LD | 10-04LD | ||
Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 3 | 5 | 7.5 | 10 | |
Lifting Speed(m/min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.7/0.9 | 1.8/0.6 | 2.7/0.9 | |
Lifting Motor Power(kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | |
Traveling Speed(m/min) | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | 20.0/5.0 | |
Traveling Motor Power(kw) | 0.4/0.12 | 0.4/0.12 | 0.4/0.12 | 0.4/0.12 | 0.4/0.12 | 0.4/0.12 | 0.8/0.27 | 0.8/0.27 | 0.8/0.27 | 0.8/0.27 | 0.8/0.27 | |
Rotation Speed(r/min) | 2880/960 | |||||||||||
Insulation Grade | F | |||||||||||
Power Supply | 3P 220V-690V | |||||||||||
Control Voltage | 24V/36V/48V | |||||||||||
No. of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 3 | 4 | |
Spec. of Load Chain | ϕ6.3 | ϕ7.1 | ϕ10 | ϕ10 | ϕ7.1 | ϕ11.2 | ϕ11.2 | ϕ10 | ϕ7.1 | ϕ11.2 | ϕ11.2 | |
Net Weight(kg) | 94 | 120 | 166 | 195 | 124 | 195 | 207 | 212 | 302 | 340 | 480 | |
I-Beam Width(mm) | 58-153 | 58-153 | 82-178 | 82-178 | 82-178 | 100-178 | 100-178 | 100-178 | 100-178 | 150-220 | 150-220 | |
Basic Dimension (mm) | H | 400 | 480 | 570 | 570 | 535 | 640 | 640 | 685 | 740 | 890 | 850 |
A | 545 | 582 | 670 | 670 | 520 | 670 | 670 | 670 | 670 | 670 | 670 | |
B | 2 0 | 280 | 313 | 313 | 260 | 313 | 313 | 313 | 313 | 313 | 313 | |
D | 585 | 630 | 720 | 720 | 665 | 775 | 775 | 750 | 825 | 1020 | 996 | |
E | 400 | 445 | 505 | 505 | 445 | 526 | 526 | 503 | 541 | 730 | 700 | |
