  • PDH Electric Chain Hoist

    Add time:2022-05-12 09:51:37   Number of views:1372

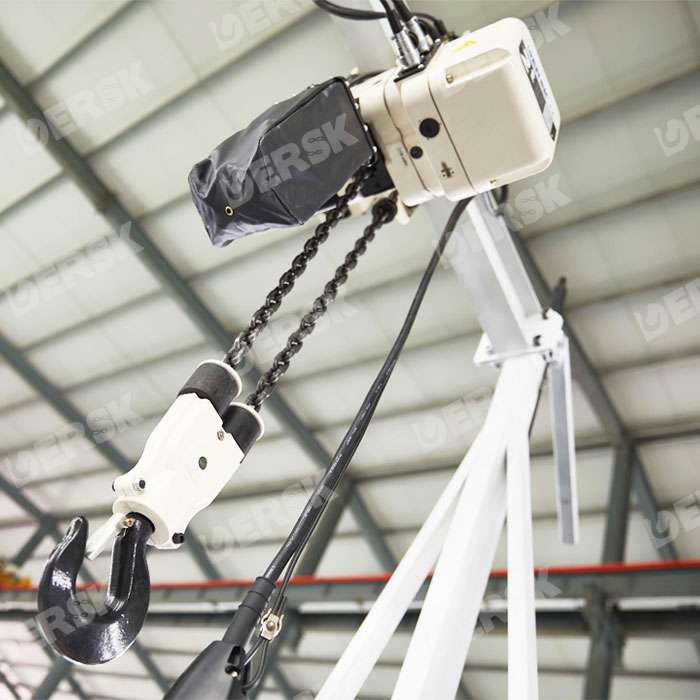

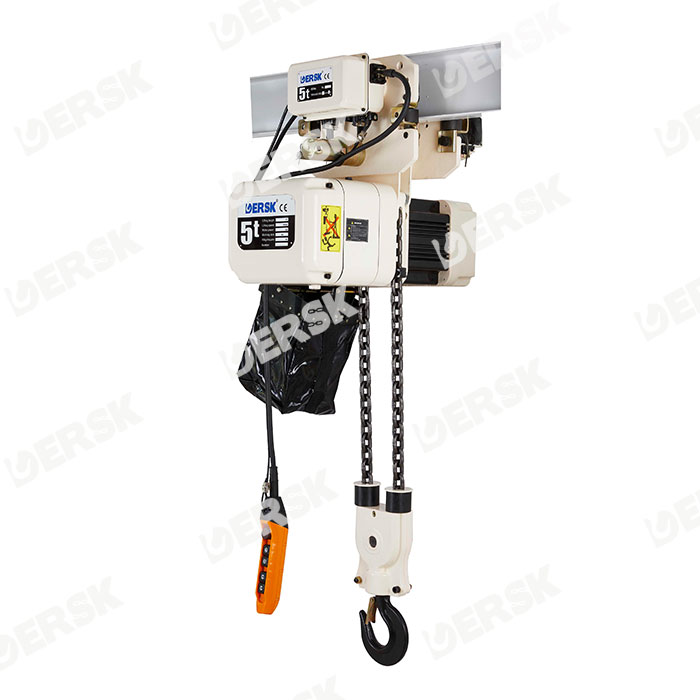

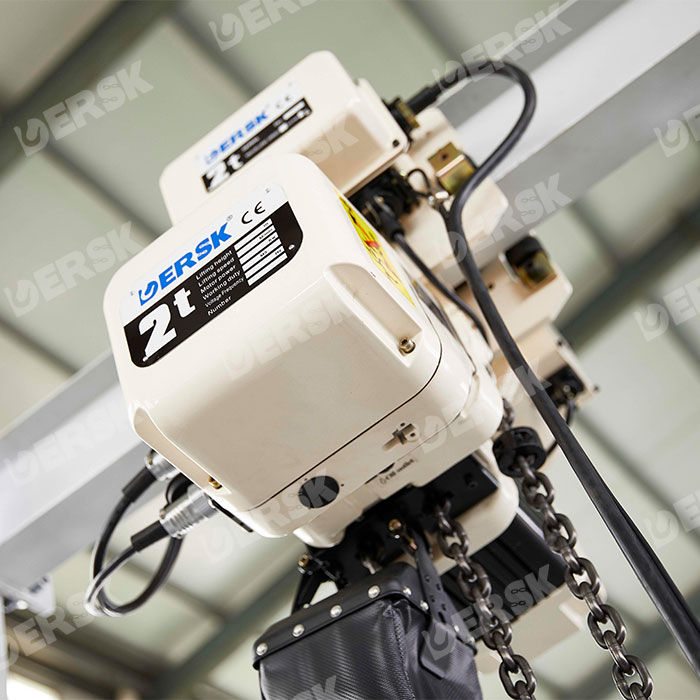

    PDH Electric Chain Hoist With Trolley

    Product features:

    * Working class is M5, can work for a long time. Small, light, compact housing, excellent waterproof and dustproof-lP55.

    * Braking system: adopting electro-magnetic brakes to get high precision

    * High strength gear material is heat-treated and noise range is 60-65db.

    * The hoist adopts FEC80 ultra-treated steel chain.



    Technique Parameters

    TYPE

    PDH-A-0.5

    PDH-A-1

    PDH-A-2

    PDH-A-3

    PDH-A-5

    Standard Lifting Height (m)

    3

    Capacity(t)

    0.5

    1

    2

    3

    5

    Lifting Speed (m/min)

    7.2

    6

    3

    6

    3

    Power(Kw)

    0.9

    1.1

    1.1

    3

    3

    Voltage(v)

    110-460

    Frequency(Hz)

    50/60

    Chain Falls

    1

    1

    2

    1

    2

    Chain Specification

    ϕ6.3x19

    ϕ8x24

    ϕ8x24

    ϕ11.2x34

    ϕ11.2x34

    Test Load(T)

    0.625

    1.25

    2.5

    3.75

    6.25

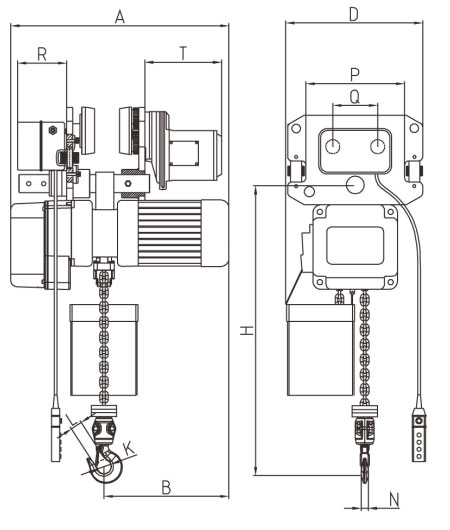

    Size Specificatio

    Type

    Capacity(Ton)

    Unit(mm)

    H

    A

    B

    D

    K

    L

    N

    R

    T

    P

    Q

    PDH-A-0.5

    0.5

    390

    595

    320

    300

    Ø40

    31

    24

    142

    231

    206

    111

    PDH-A-1

    1

    400

    595

    320

    300

    Ø40

    31

    24

    142

    231

    206

    111

    PDH-A-2

    2

    580

    595

    320

    300

    Ø49

    35

    30

    142

    231

    237

    127

    PDH-A-3

    3

    620

    785

    395

    520

    Ø59

    42

    35

    142

    231

    265

    140

    PDH-A-5

    5

    860

    785

    395

    580

    Ø60

    45

    43

    142

    231

    296

    156




    Size Specification

    Type

    Capacity(Ton)

    Unit(mm)





    H

    A

    B

    D

    K

    L

    N

    R

    PDH-A-0.5

    0.5

    510

    595

    320

    290

    240

    640

    31

    24

    PDH-A-1

    1

    520

    595

    320

    290

    240

    640

    31

    24

    PDH-A-2

    2

    590

    595

    320

    300

    245

    649

    35

    30

    PDH-A-3

    3

    630

    785

    395

    465

    295

    @59

    42

    35

    PDH-A-5

    5

    860

    785

    395

    465

    360

    660

    45

    43
