* Adopt emergency stop switch and reinforced braking switch position limit
* Up limit device
* Protection class up to IP54

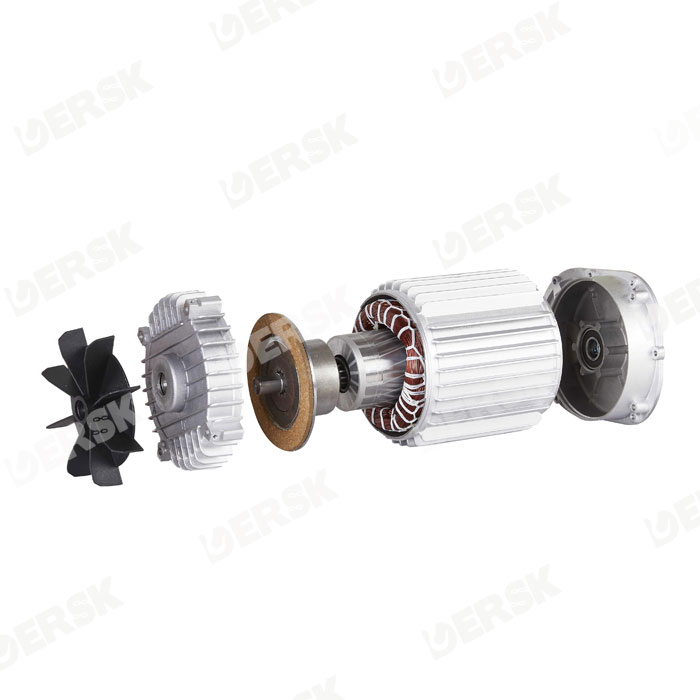

* 100% copper wire for motors
Model | Method of Use | Rate Volt(v) | Input Power (v) | Rated Load (kg) | Lifting Speedc(m/min) | Lifting Height(m/min) | Qty/CTN(P-C-S) | Packing Size(mm) | G.W/N.W(kg) |
PA200 | Single-Hook | AC 110/220V | 480 | 100 | 10 | 12 | 2 | 470x370x160 | 24/22 |
Double-Hook | 200 | 5 | 6 | ||||||
PA250 | Single-Hook | 540 | 125 | 10 | 12 | ||||
Double-Hook | 250 | 5 | 6 | 520x420x170 | 25/23 | ||||
PA400 | Single-Hook | 950 | 200 | 10 | 12 | 35/33 | |||
Double-Hook | 400 | 5 | 6 | ||||||
PA500 | Single-Hook | 1020 | 250 | 8 | 12 | ||||
Double-Hook | 500 | 4 | 6 | ||||||
PA600 | Single-Hook | 1200 | 300 | 8 | 12 | 39/37 | |||
Double-Hook | 600 | 4 | 6 | ||||||
PA800 | Single-Hook | 1350 | 400 | 8 | 12 | ||||
Double-Hook | 800 | 4 | 6 | ||||||
PA990 | Single-Hook | 1600 | 500 | 8 | 12 | 1 | 560x250x350 | 33/32 | |
Double-Hook | 1000 | 4 | 6 | ||||||
PA990 | Single-Hook | 1800 | 600 | 8 | 12 | ||||
Double-Hook | 1200 | 4 | 6 |
