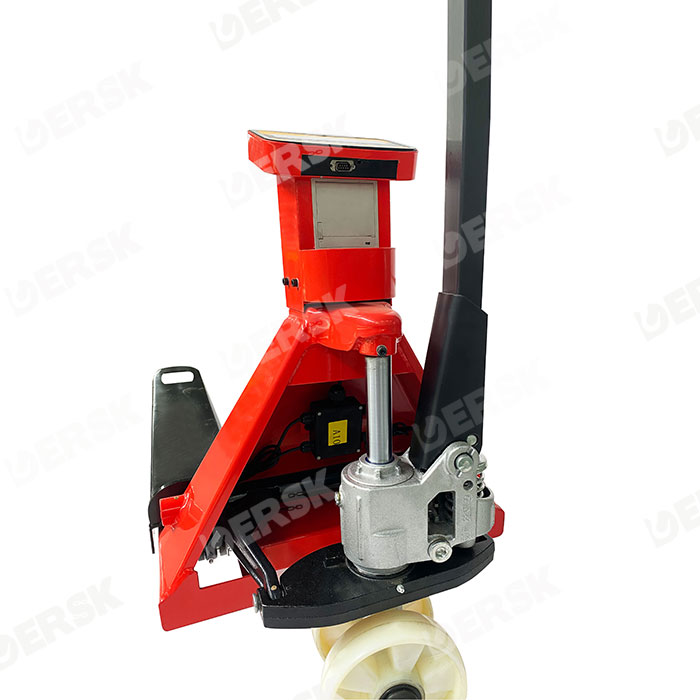

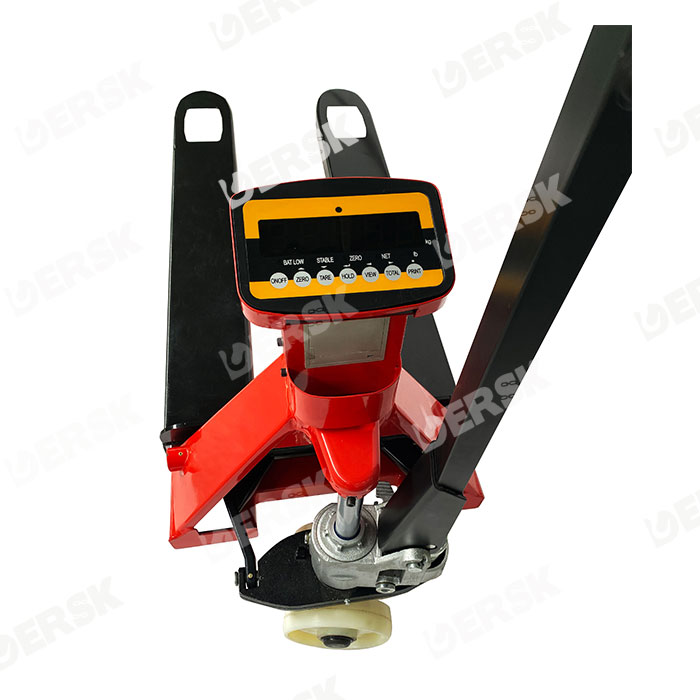

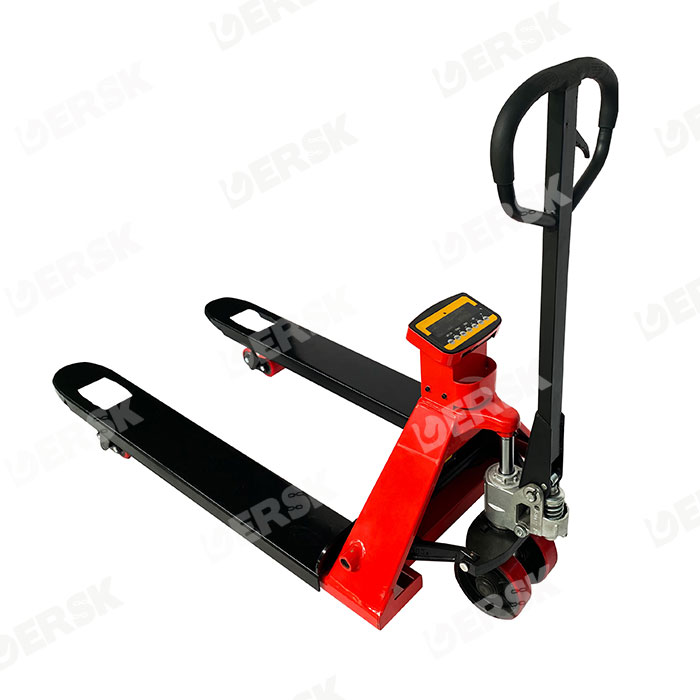

  • Hand Pallet Truck with Scale

    Add time:2022-05-12 14:53:15   Number of views:262

    * A simple third gear control handle.

    * Galvernized pump with oil return device and safety relief valve.

    * A high balance of the reinforcing brace

    * With more than 14 oil input holes for daily maintenance .
    * Cost effective  High standard products with reasonable price

    * Simplify the logistic process for greater efficiency

    Time and space saving --- Compact design to make the delivery economical

    * Low energy consumption Powered Battery charger

    * Convenient Back-lighted LCD for easy reading and easy operation.

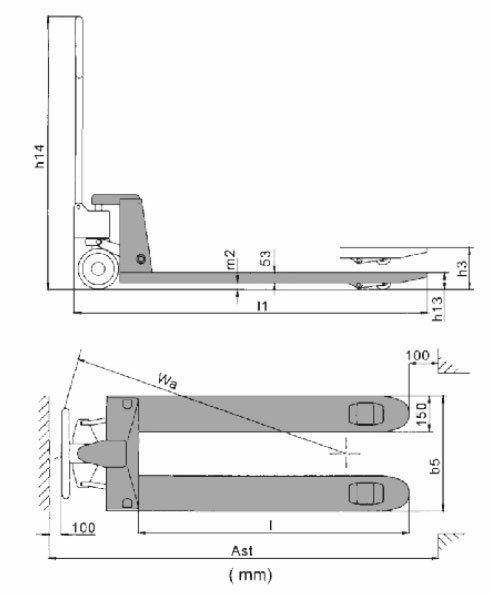

    Capacity

    Q (KGs)

    2500

    Min. Fork Height

    h13 (mm)

    80

    Max. Fork Height

    h3 (mm)

    195

    Single Fork Size

    mm

    160*60

    Steering Wheels

    mm

    ϕ180*50

    Tandem Loading Wheels

    mm

    ϕ80*70

    Total Height

    h14 (mm)

    1160

    Total Length

    I1 (mm)

    1500

    Fork Length

    I (mm)

    1150

    Fork Width

    b5 (mm)

    550/685

    Net Weight

    KGs

    70-75
