Safe and reliable, no fire, no explosion
Complying with lEC, UL Global standard certification requirements, ensuring the safety of user property

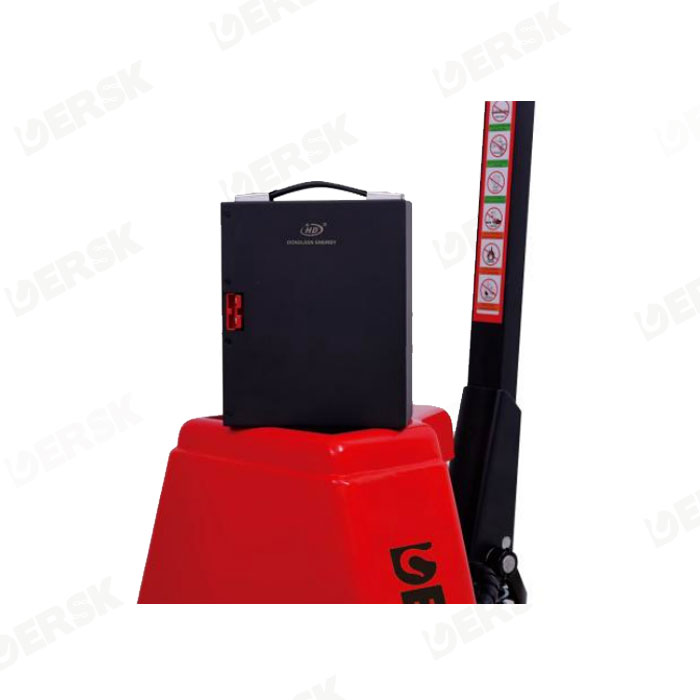

Long service life: lithium battery with a long service life.
High safety performance: it adopts soft package battery technology, built-in protection board and multiple protection to eliminate overcharge and over discharge.
Maintenance free: no need to add water
With a spare battery, the unit can keep working 24 hours.
Fast charging-2 hours only.

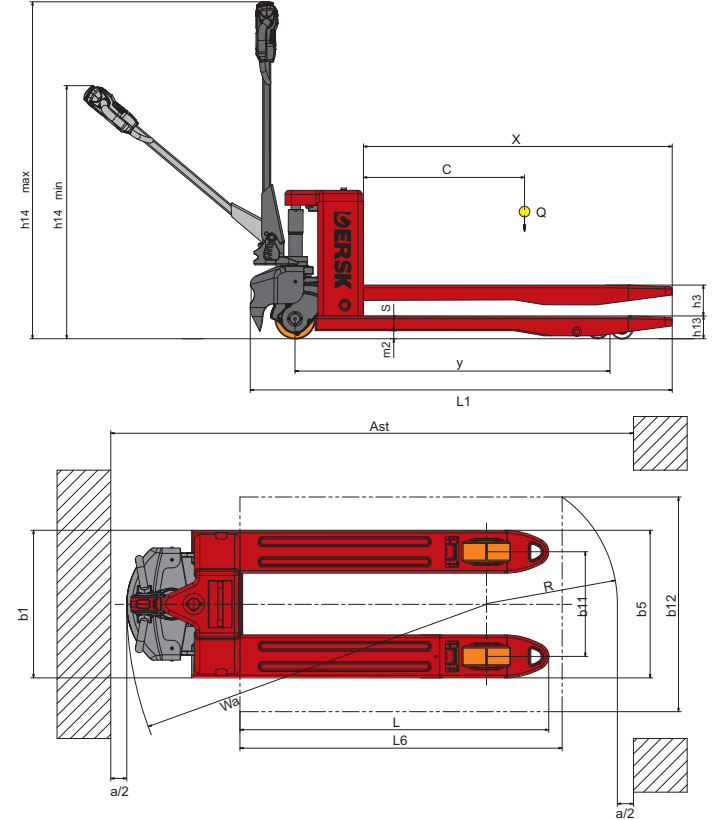

Electric Pallet Truck Technical Specifications
| Item | Unit | DSK-DA-15 | DSK-DA-20 | ||
| Specifiction | |||||
| 1.1 | Type | Electric | Electric | ||
| 1.2 | Working type | Pedestrian | Pedestrian | ||
| 1.3 | Capacity | Q | kg | 1500 | 2000 |
| 1.4 | Load Center | K | mm | 600 | 600 |
| 1.5 | Min. Fork Height | mm | 85 | 85 | |
| 1.6 | Wheel Base | y | mm | 1173/1223 | 1173/1223 |
| 1.7 | Wheels Type | PU | PU | ||
| 1.8 | Driving Wheels size（front） | mm | 150*55 | 150*55 | |
| 1.9 | Bearing Wheels size（rear） | mm | 80*93（single） | 80*93（single） | |
| mm | 80*70（double） | 80*70（double） | |||
| 1.10 | Wheels Qty (drive & bearing) | mm | 1+2/4 | 1+2/4 | |
| 1.11 | Max. Lift Height | mm | 115 | 115 | |
| 1.12 | Height of Tiller Drive，Min. / Max. | h14 | mm | 750/1255 | 750/1255 |
| 1.13 | Overall Length | mm | 1572/1622 | 1572/1622 | |
| 1.14 | Fork Length | L | mm | 1150/1200 | 1150/1200 |
| 1.15 | Body Width | b1 | mm | 550/685 | 550/685 |
| 1.16 | Fork size（height/width/length） | mm | 55/160/1150(1200) | 55/160/1150(1200) | |
| 1.17 | Overall Fork Width | mm | 550/685 | 550/685 | |
| 1.18 | Ground Clearance（Min. & Max.） | mm | 30/145 | 30+145 | |
| 1.19 | Min. Aisle Width (1000*1200 pallet) | Ast | mm | 1914 | 1914 |
| 1.20 | Min. Aisle Width (800*1200 pallet) | Ast | mm | 1830 | 1830 |
| 1.21 | Min. Turning Radius | Wa | mm | 1340/1390 | 1340/1391 |
| Operation | |||||
| 2.1 | Max. Travel Speed（full load/empty load) | km/h | 4/4.5 | 4/4.5 | |
| 2.2 | Max. Lift Speed（full load/empty load） | mm/s | 30/35 | 30/35 | |
| 2.3 | Max. Lower Speed（full load/empty load） | mm/s | 35/25 | 35/25 | |
| 2.4 | Gradeability（full load/empty load） | % | 6%/20% | 6%/20% | |
| 2.5 | Drive Motor Power | kw | DC0.75 | DC1 | |
| 2.6 | Lift Motor Power | kw | DC0.8 | DC0.8 | |
| Electric Control | |||||
| 3.1 | Battery Voltage、Battery Capacity | V/Ah | 48V/10Ah(48V/15Ah) | 48V/10Ah(48V/15Ah) | |
| 3.2 | Brake Type | Regenerative | Regenerative | ||
| 3.3 | Brake Device | Electromagnetic | Electromagnetic | ||
| 3.4 | Operation Noise Level | A | <70db<> | <70db<> | |
| 3.5 | Net Weight | kg | 121/127 | 119/125 | |
