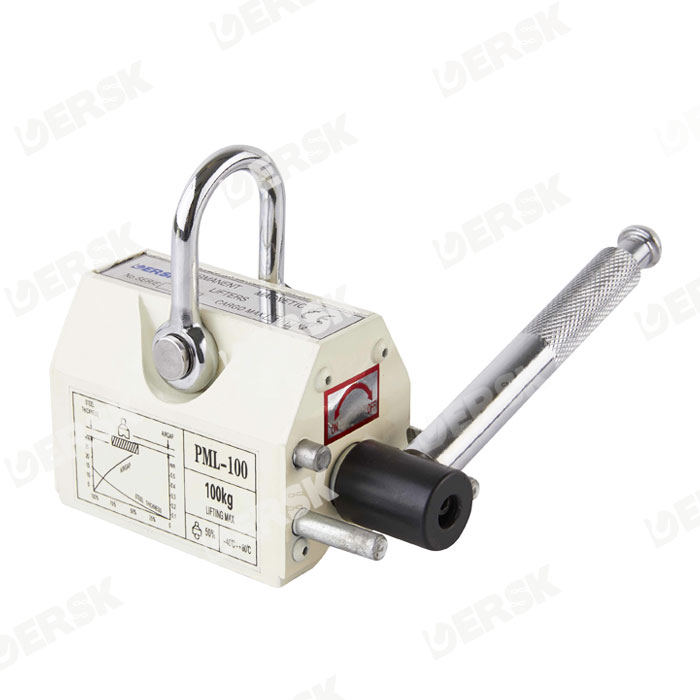

PML Magnetic Lifter

The permanent magnetic lifter can be used in a variety of industries for the transportation and lifting of steel, engine parts, semi manufactured goods and moulds, due to its natural magnetic force.

FEATURES

• The magnetic lifter's highest pulling force is 3.0 times greater than rated lifting capability.

• Light weight, ranging from 10-125kg.

• Safe: No electricity is needed to operate the magnetic lifter, once operated there is less than 1% residual magnetism.

• The simple switch and safety button design allows for one handed operation.

Large sizes available, output up to 6000kg.

How to determine the right type of magnetic lifting for your application?

• The capacity of lifting magnet determined by the thickness and surface quality of the component;

• Before operation it is necessary to find out the percentage or the steel thickness or the component and capacity curve;

•If the components surface roughness is less than 6.3um, the magnetic lifter surface gap will not exist, the lifter gap should be estimated.

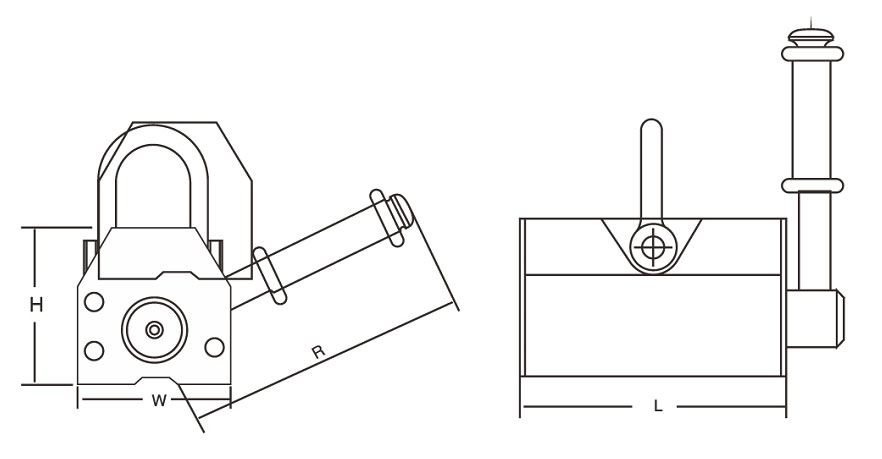

Model	Rated lifting strength	Cylindrical lifting strenth	Max.pull-off strength	L	W	H	R	Operation temperature	Net weight
	Rated lifting strength	Cylindrical lifting strenth	Max.pull-off strength					Operation temperature	Net weight
	Kgf	Kgf	Kgf					℃	kg
PML-1	100	30	300	92	64	70	145	<80<>	3
PML-2	200	60	600	114	72	86	145	<80<>	5

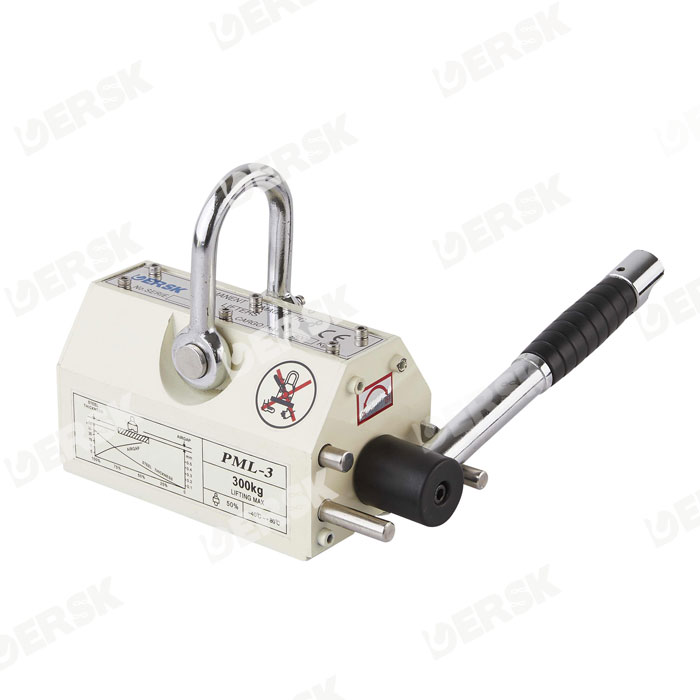

PML-3	300	100	900	165	88	96	176	<80<>	10
PML-5	500	150	1500	210	88	118	203	<80<>	12.5

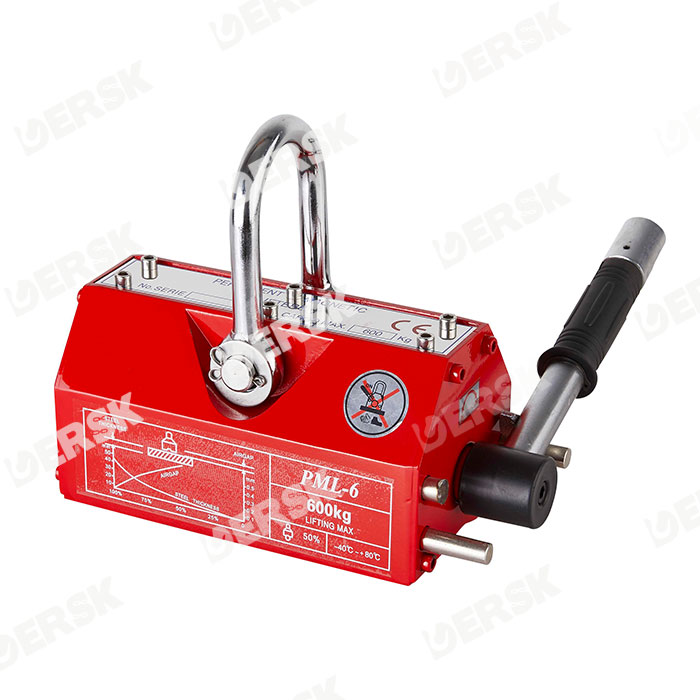

PML-6	600	200	1800	216	118	138	219	<80<>	20
PML-10	1000	300	3000	264	148	168	266	<80<>	37
PML-15	1500	500	4500	308	168	168	285	<80<>	62
PML-20	2000	600	6000	397	168	216	380	<80<>	80
PML-830	3000	1000	9000	443	226	265	512	<80<>	160
PML-50	5000	1500	15000	582	290	265	627	<80<>	320
PML-60	6000	2000	18000	713	290	266	707	<80<>	398
