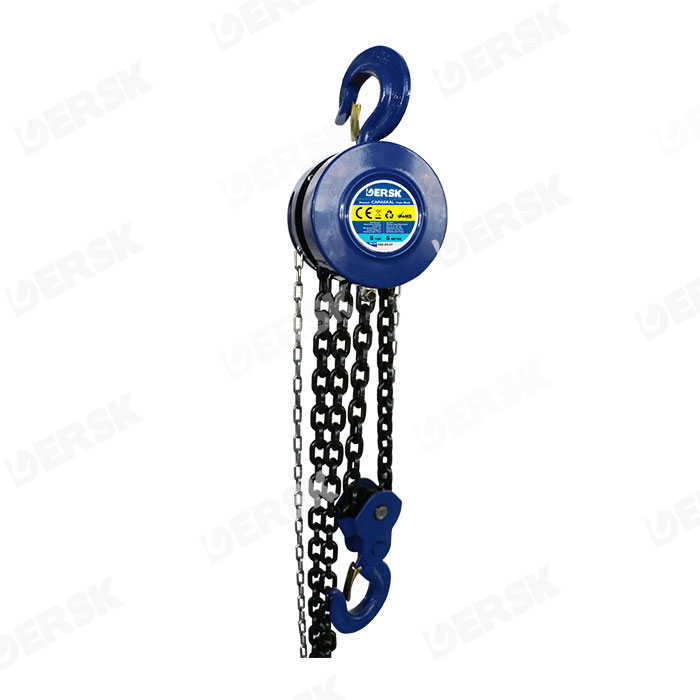

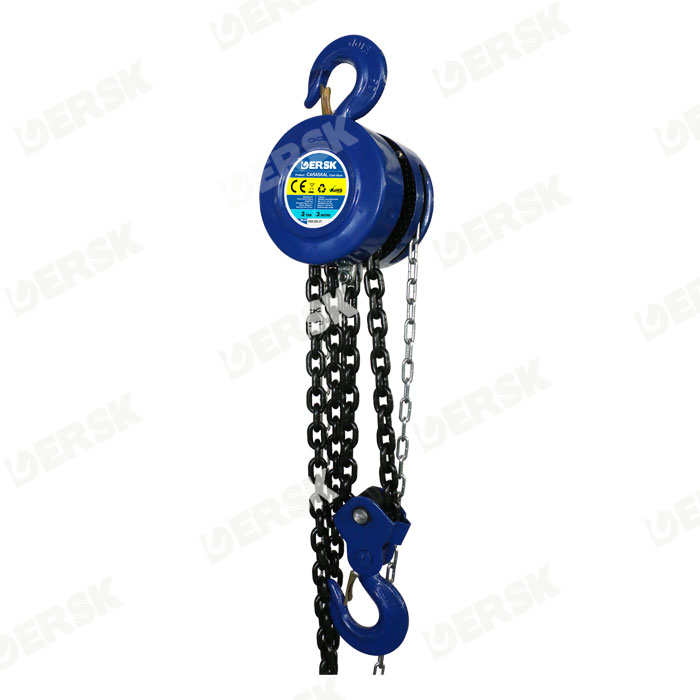

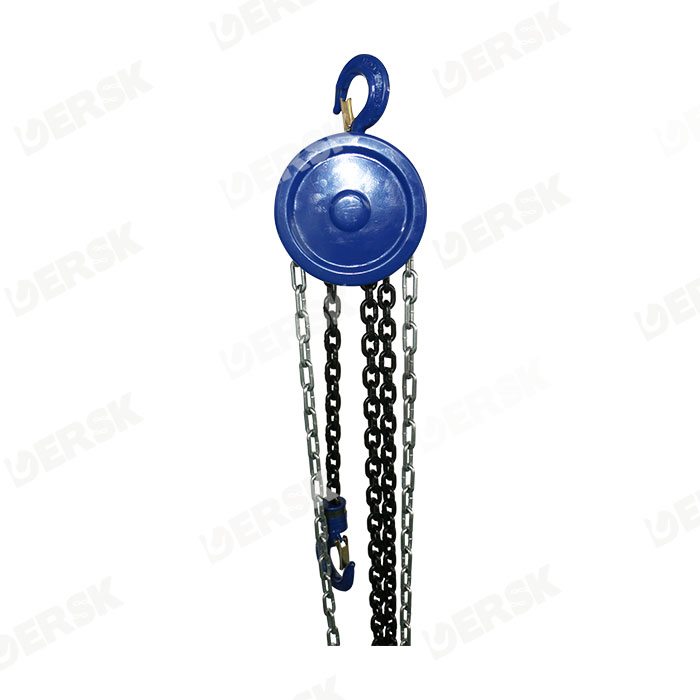

* It is the most cost-efficient chain block made in China
* Low effort to fit Maximum load
* Premium grade alloy load chain and zinc plated hand chain as standard
* Drop forged and expert heat treated hooks for great strength and long wearing
* Capacity ranges from 0.5t to 20t, heavy duty 30t, 50t is available
Model | HSZ-DS-1T | HSZ-DS-2T | HSZ-DS--3T | HSZ-DS-5T | HSZ-DS-10T |
Capacity | 1 | 2 | 3 | 5 | 10 |
Standard Lift (m) | 2.5 | 3 | 3 | 3 | 3.5 |
Test Load (t) | 1.5 | 3 | 4.5 | 7.5 | 12.5 |
Min. Distance between hooks (mm) | 275 | 380 | 475 | 600 | 700 |
Chainpull to lift full Load (n) | 33 | 34 | 35 | 39 | 41 |
No. of load chain fall lines | 1 | 2 | 2 | 2 | 4 |
Diameter of load Chain (mm) | 6 | 6 | 8 | 10 | 10 |
Net weight kgs | 11 | 21 | 22 | 40 | 77 |
Gross weight kgs | 12 | 22 | 23 | 41.5 | 85 |
Packing Dimension (cm) | 30x24x18 | 35x25x19 | 38x33x20 | 45x35x24 | 62x50x28 |
